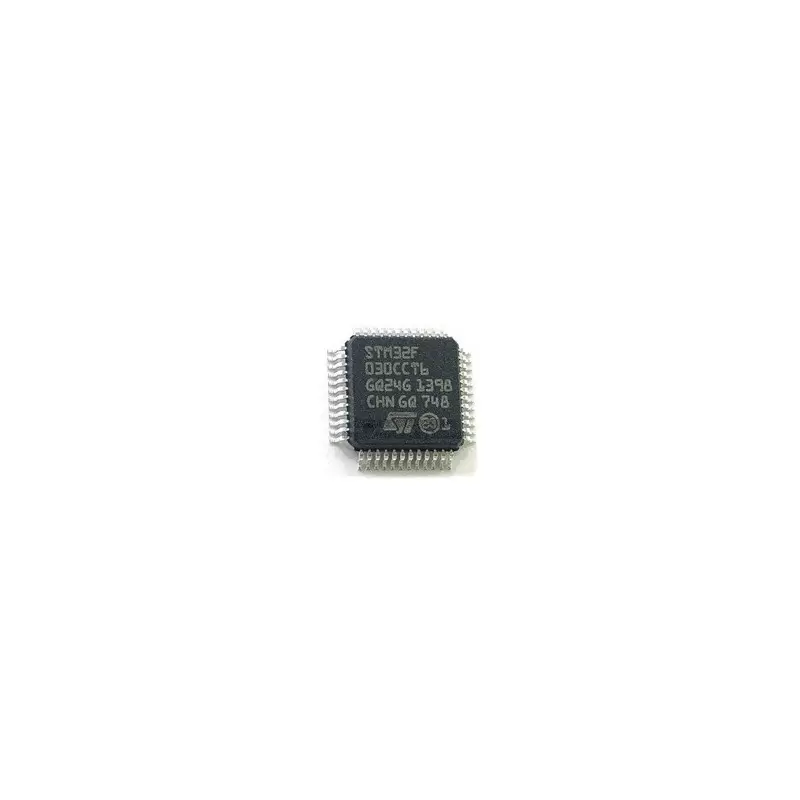

میکروکنترلر STM32F030CCT6 اورجینال -New and original+گارانتی

The STM32F030x4/x6/x8/xC microcontrollers incorporate the high-performance Arm^® Cortex^®-M0 32-bit RISC core operating at a 48 MHz frequency, high-speed embedded memories (up to 256 Kbytes of Flash memory and up to 32 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. All devices offer standard communication interfaces (up to two I²Cs, up to two SPIs and up to six USARTs), one 12-bit ADC, seven general-purpose 16-bit timers and an advanced-control PWM timer.

Features

Core: Arm® 32-bit Cortex®-M0 CPU, frequency up to 48 MHz

Memories

–         16 to 256 Kbytes of Flash memory

–        4 to 32 Kbytes of SRAM with HW parity

CRC calculation unit

Reset and power management

–         Digital & I/Os supply: VDD = 2.4 V to 3.6 V

–         Analog supply: VDDA = VDD to 3.6 V

–         Power-on/Power down reset (POR/PDR)

–        Low power modes: Sleep, Stop, Standby

Clock management

–         4 to 32 MHz crystal oscillator

–         32 kHz oscillator for RTC with calibration

–         Internal 8 MHz RC with x6 PLL option

–        Internal 40 kHz RC oscillator

Up to 55 fast I/Os

–         All mappable on external interrupt vectors

–        Up to 55 I/Os with 5V tolerant capability

5-channel DMA controller

One 12-bit, 1.0 μs ADC (up to 16 channels)

–         Conversion range: 0 to 3.6 V

–        Separate analog supply: 2.4 V to 3.6 V

Calendar RTC with alarm and periodic wakeup from Stop/Standby

11 timers

–         One 16-bit advanced-control timer for six-channel PWM output

–         Up to seven 16-bit timers, with up to four IC/OC, OCN, usable for IR control decoding

–         Independent and system watchdog timers

–        SysTick timer

Communication interfaces

–         Up to two I2C interfaces

–         Fast Mode Plus (1 Mbit/s) support on one or two I/Fs, with 20 mA current sink

–         SMBus/PMBus support (on single I/F)

–         Up to six USARTs supporting master synchronous SPI and modem control; one with auto baud rate detection

–        Up to two SPIs (18 Mbit/s) with 4 to 16 programmable bit frames

Serial wire debug (SWD)

All packages ECOPACK®2
