آیسی EA3036CQBR QFN20- اورجینال- New and original

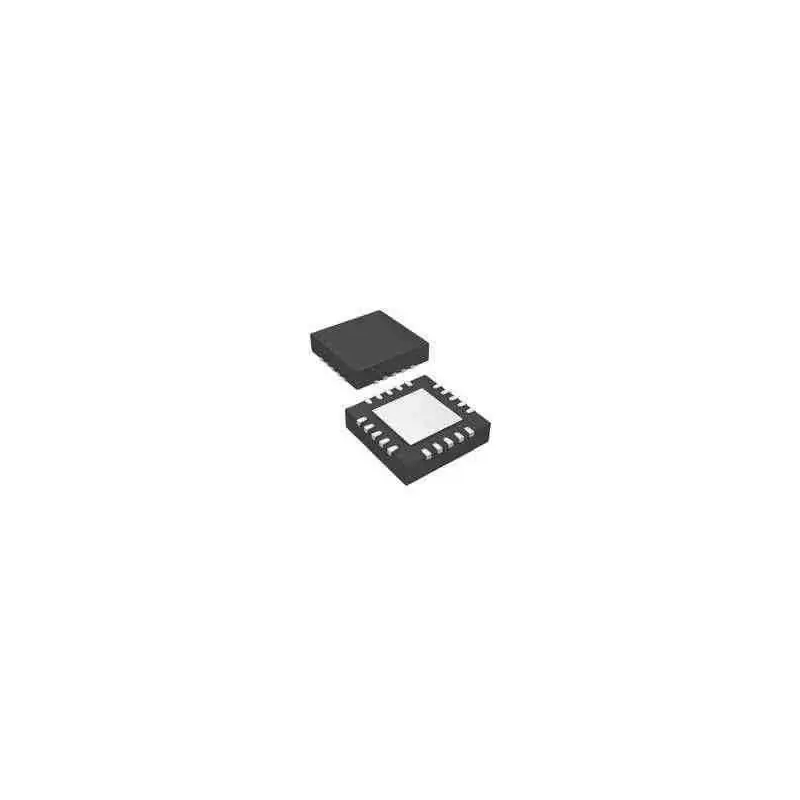

آیسی EA3036CQBR  QFN20

The EA3036C is a 3CH power management IC for applications powered by one Li-Ion battery or a
DC 5V adapter. It integrates three synchronous buck converters and can provide high efficiency
output at light load and heavy load operation. The internal compensation architecture simplifies
the application circuit design. Besides, the independent enable control makes the designer have
the greatest flexibility to optimize timing for power sequencing purposes. The EA3036C is
available in a 20 pin QFN 3x3 package. Features
*2.7V to 5.5V Input Voltage Range
*Three Buck Converters Output Voltage Range: 0.6V to Vin
Maximum Continuous Loading: 1A (3CH total output power consumption must be less
than 6W)
Fixed 1.5MHz Switching Frequency
100% Duty Cycle Low Dropout
Operation <1uA Shutdown Current
Independent Enable Control
Internal Compensation
Cycle-by-Cycle Current Limit
Short Circuit Protection
*Auto Recovery OTP Protection
*Available in 20-pin 3mm x 3mm QFN Package
