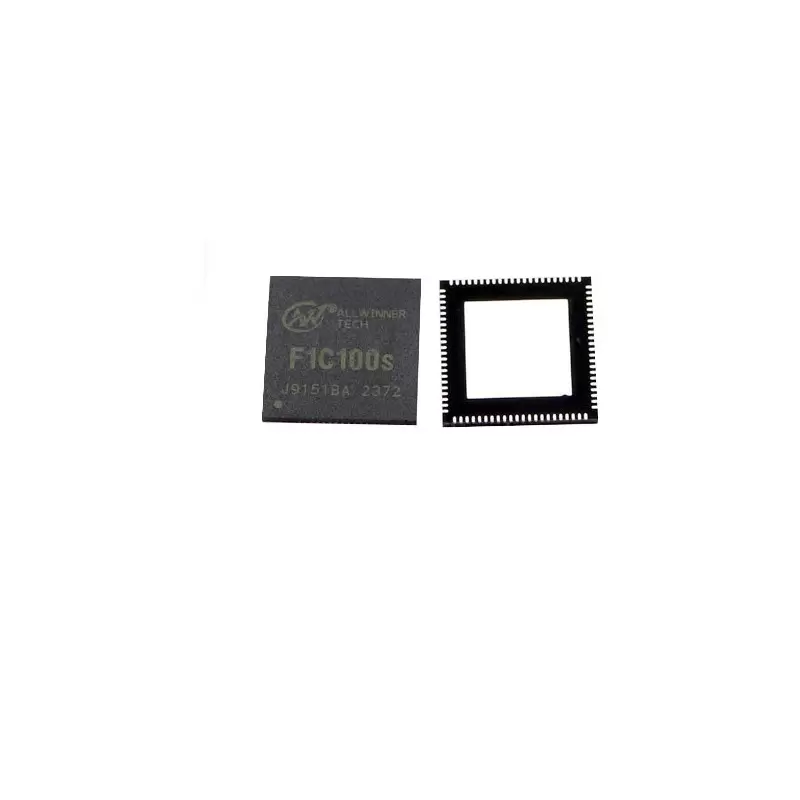

ایسی f1c100s اورجینال- New and original

The F1C100s is a highly integrated, low-power mobile application processor that can be used in a
wide range of multimedia audio and video equipment.
The F1C100s is based on the ARM9 architecture and integrates DDR. It supports HD video
decoding, including H.264, H.263, MPEG1/2/4, etc. It also integrates audio codec and I2S/PCM
interface to enhance the user experience.
The F1C100s has excellent system integration capabilities, simple development, supports for
low-power applications, and rich interfaces such as USB OTG, UART, SPI, TWI, TP, SD/MMC, CSI,
etc., which can support operations such as Melis, Linux OS. It is a product with simple
development and high cost performance.

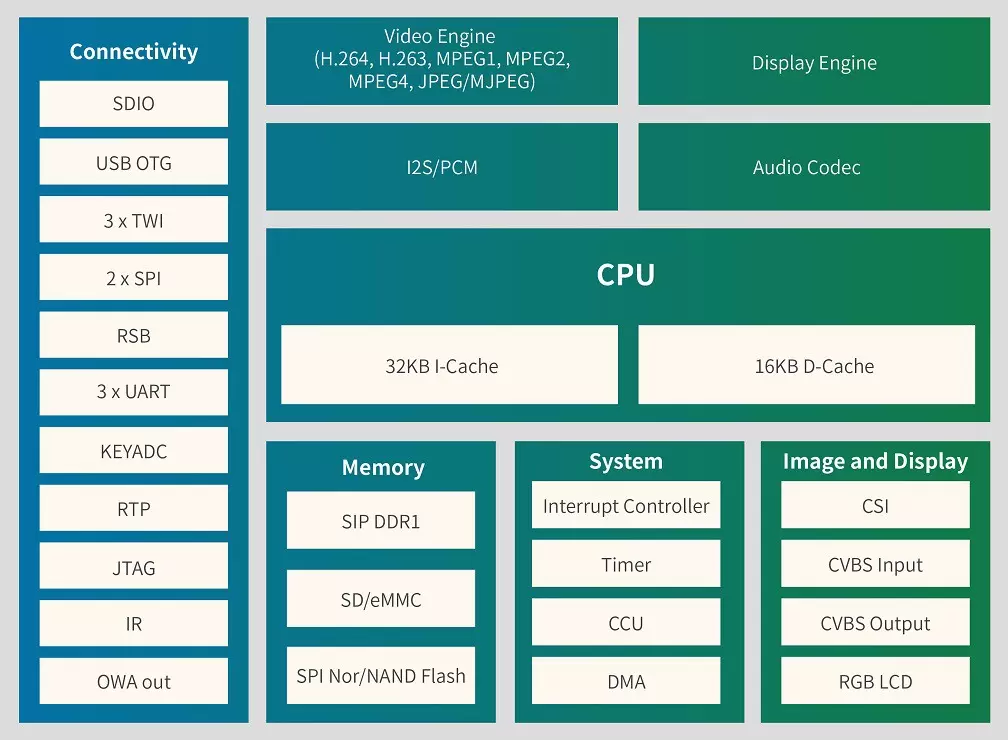

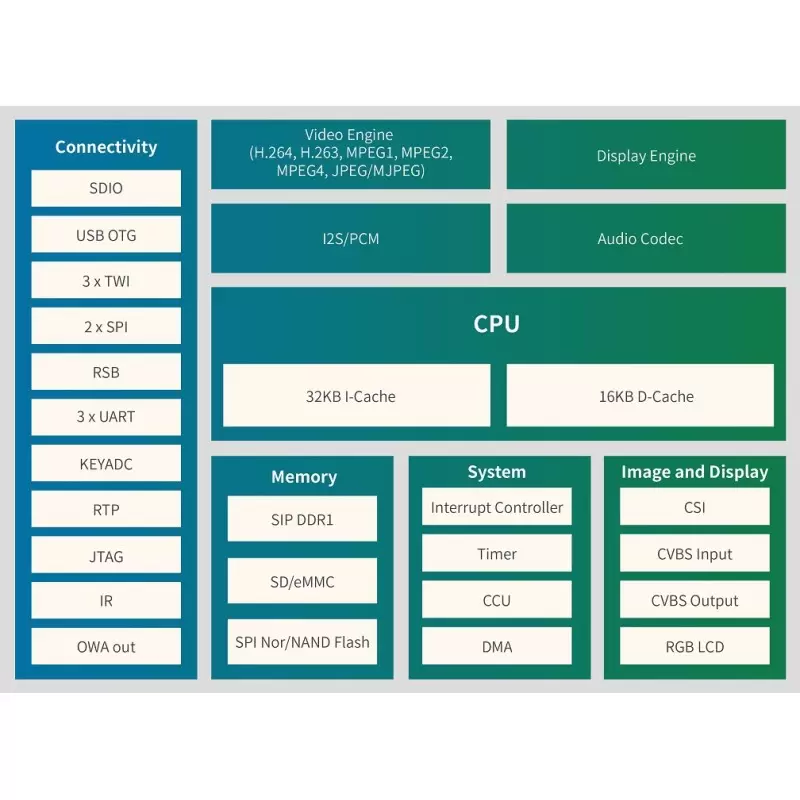

Features
CPU:
    •ARM9 CPU architecture
    •16KByte D-Cache
    •32KByte I-Cache
Memory:
    •SIP 32MB DDR1
    •SD2.0,eMMC 4.41
Video:
    •H.264 1280x720@30fps decoding
    •MPEG1/2/4 1280x720@30fps decoding
    •MJPEG 1280x720@30fps encoding
    •JPEG encode size up to 8192x8192
Camera:
    •8-bit CMOS-sensor interface
    •CCIR656 protocol for NTSC and PAL
Audio:
    •Integrated analog audio codec with two DAC channels and one ADC channel,maximum 192kHz DAC sample rate and 48kHz ADC sample rate
    •One I2S/PCM interface
Display:
    •LCD RGB interface up to 1280x720@60fps
    •TV CVBS output, support NTSC/PAL, with auto plug detecting
Connectivity:
    •USB OTG, SDIO,IR, 3 x TWI, 2 x SPI, 3 x UART
OS:
    •Melis
Package:
    •QFN88, 10mm x 10mm
Process:
    •40nm
