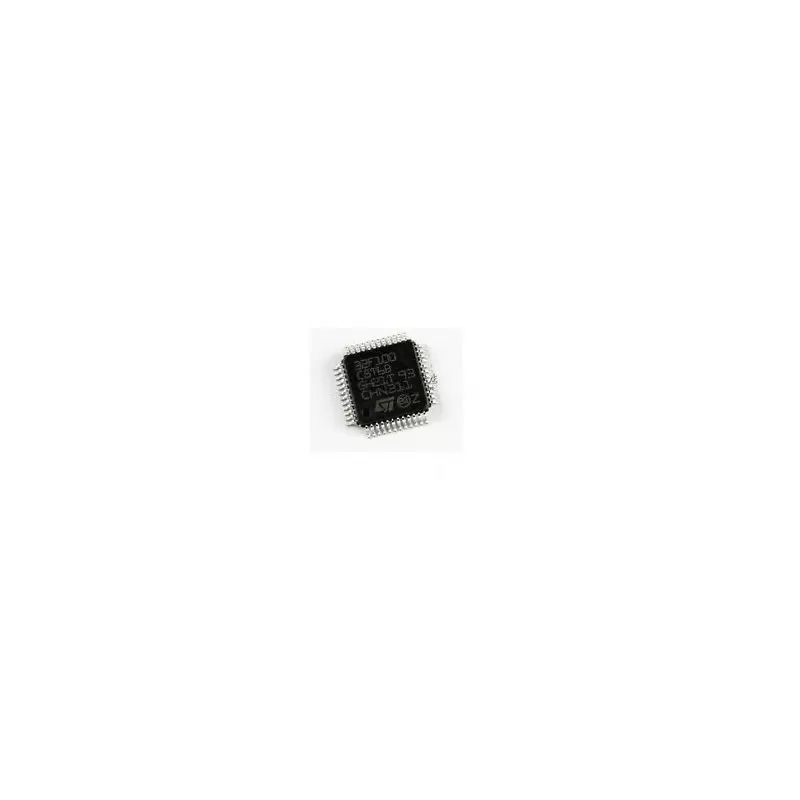

میکروکنترلر STM32F100R8T6B / اورجینال New and original+گارانتی

میکروکنترلر  STM32F100R8T6B / اورجینال

The STM32F100R8T6B is a part of STM32 Series Low & medium-density value line, advanced ARM-based 32-bit Microcontroller with 16 to 128 KB Flash, 12 timers, ADC, DAC & 8 comm interfaces. It has an Operating temperature ranges b/w -40 °C to 85 °C and available in a 64-LQFP Package.

The STM32F100xx value line family incorporates the high-performance ARM Cortex™-M3 32-bit RISC core operating at a 24 MHz frequency, high-speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 8 Kbytes), and an extensive range of enhanced peripherals and I/Os connected to two APB buses.

Features:


  Memories
        16 to 128 Kbytes of Flash memory
        4 to 8 Kbytes of SRAM

  Clock, reset and supply management
        2.0 to 3.6 V application supply and I/Os
        POR, PDR and programmable voltage detector (PVD)
        4-to-24 MHz crystal oscillator
        Internal 8 MHz factory-trimmed RCInternal 40 kHz RC
        PLL for CPU clock
        32 kHz oscillator for RTC with calibration

 Low power
        Sleep, Stop and Standby modes
        VBAT supply for RTC and backup registers


 Debug mode
        Serial wire debug (SWD) and JTAG interfaces

 DMA
        7-channel DMA controller
        Peripherals supported: timers, ADC, SPIs, I2Cs, USARTs and DACs
    1 × 12-bit, 1.2 μs A/D converter (up to 16 channels)
        Conversion range: 0 to 3.6 V
        Temperature sensor
    2 × 12-bit D/A converters

  Up to 80 fast I/O ports
        37/51/80 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant
