میکروکنترلر STM32F100RBT6 /اورجینال-New and original+گارانتی

میکروکنترلرSTM32F100RBT6صد در صد اورجینال می باشد

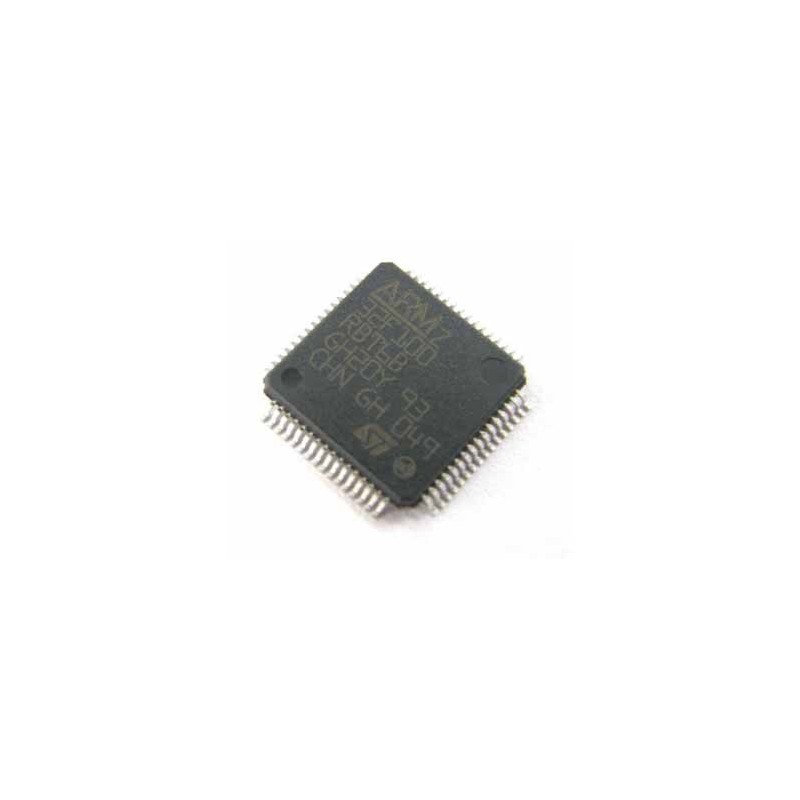

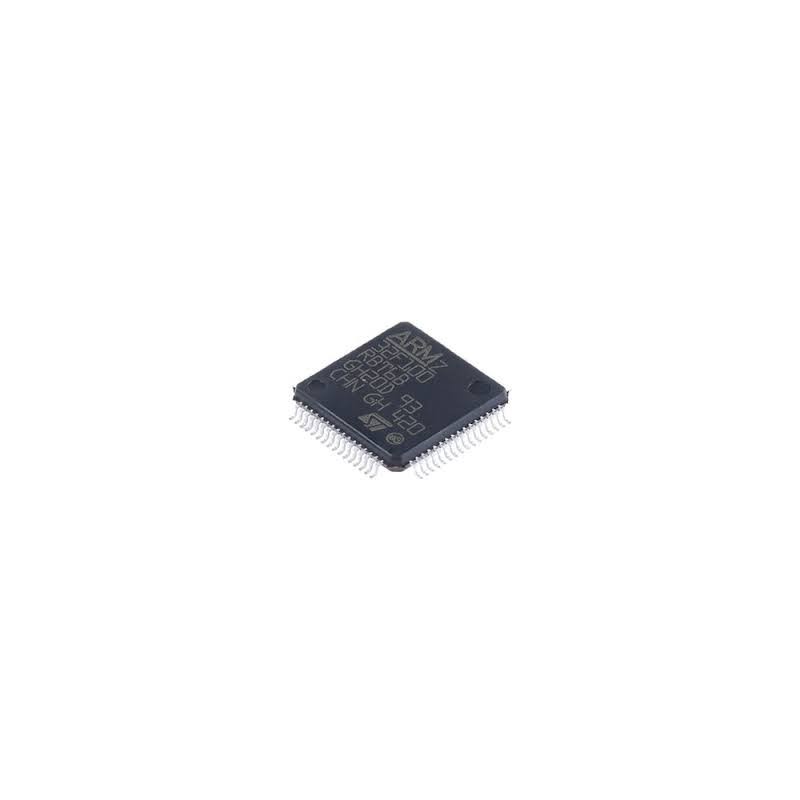

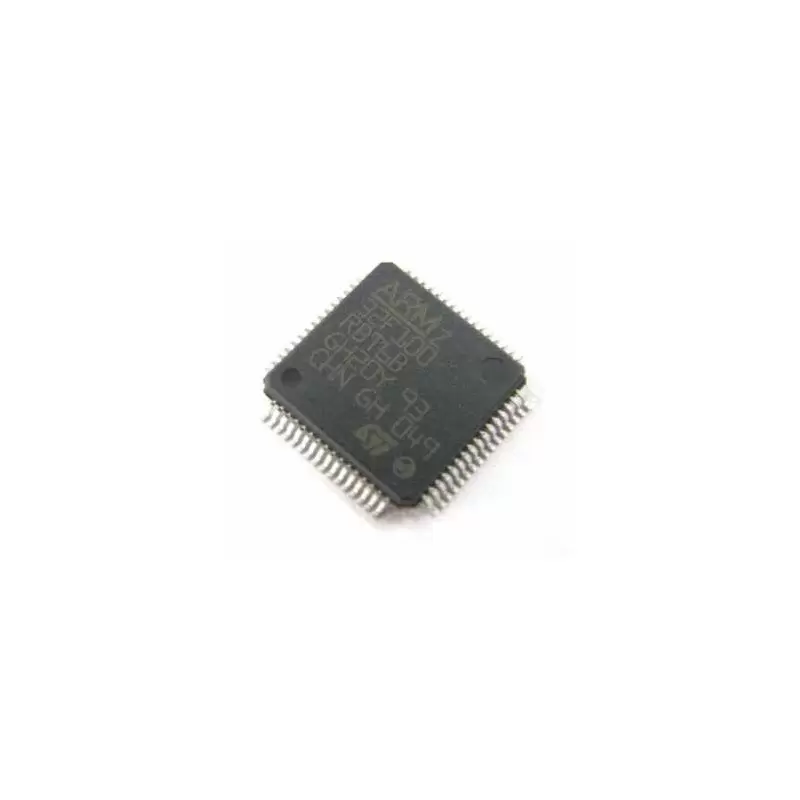

STM32F100RBT6B

STMICROELECTRONICS  STM32F100RBT6  ARM Microcontroller, Access Line, ARM Cortex-M3, 32bit, 24 MHz, 128 KB, 8 KB, 64 Pins

The STM32F100RBT6B is a Microcontroller Unit incorporates the high-performance ARM® Cortex®-M3 32-bit RISC core operating at a 24MHz frequency, high-speed embedded memories and an extensive range of enhanced peripherals and I/Os connected to two APB buses. All devices offer standard communication interfaces one 12-bit ADC, two 12-bit DACs, up to six general-purpose 16-bit timers and an advanced-control PWM timer.

    - CRC calculation unit

    - 4 to 24MHz Crystal oscillator

    - 32kHz Oscillator for RTC with calibration

    - Low power

    - Sleep, stop and standby modes

    - 0 to 3.6V Conversion range

    - Temperature sensor

    - Up to 12 timers

    - Up to 8 communications interfaces

    - Consumer electronics control (CEC) interface

    - 96-bit Unique ID


Product information

Architecture:              ARM Cortex-M3

No. of Bits:               32bit

CPU Speed:                 24MHz

Program Memory Size:       128KB

RAM Memory Size:           8KB

No. of Pins:               64Pins

MCU Case Style:            LQFP

No. of I/O's:              51I/O's

Embedded Interface Type:   I2C, SPI, USART

Supply Voltage Min:        2V

Supply Voltage Max:        3.6V

Packaging:                 Each

Product Range:             STM32 F1 ARM Cortex-M3 Microcontrollers

MSL:                       MSL 3 - 168 hours

SVHC:                      No SVHC (17-Dec-2015)
