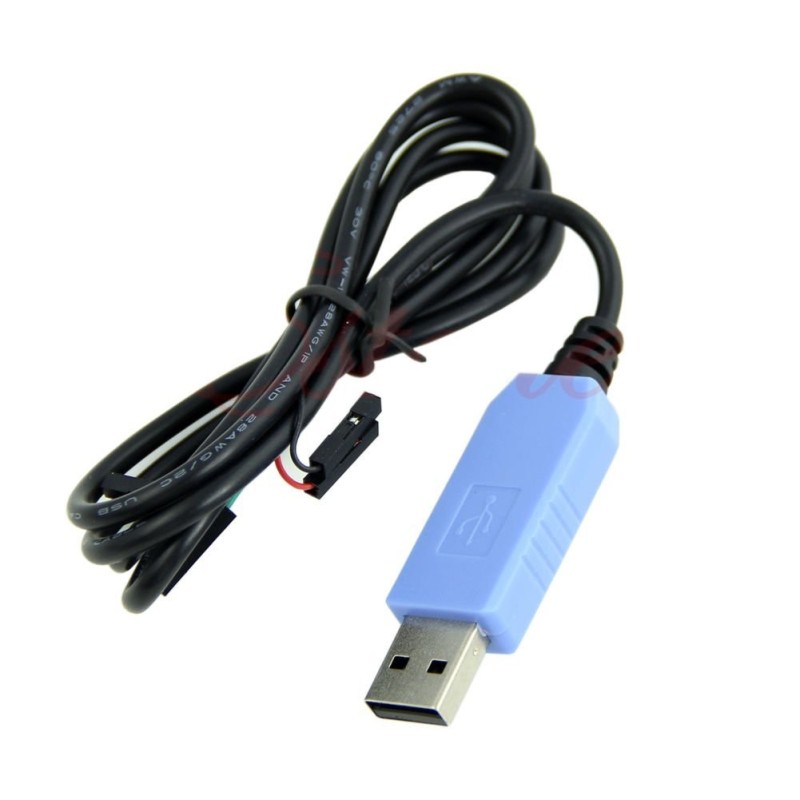

مبدل USB to serial قابلیت کار در ویندوز 8/PL2303TA

مبدل جدید PL2303TA که قابلیت کار در ویندوز 8 را دارا می باشد. این مبدل برای اولین بار توسط شرکت کویرالکترونیک وارد ایران میگردد.

This is a newly designed product, using Taiwan's prolific production company PL2303TA chips, PL2303TA provides a full-duplex asynchronous RS232 serial devices like connected to any Universal Serial Bus (USB) host can be a convenient solution. PL2303TA perfectly compatible with win XP / VISTA / 7/8 / 8.1 systems can be simulated in most operating systems allow existing applications based on COM ports can be easily transplanted and USB connectivity, and COM port software without having to re-write application of traditional COM port.

By using USB bulk transfer mode, the advantages of large data buffers and automatic flow control, PL2303TA able to achieve higher throughput compared to traditional UART does not need (Universal Asynchronous Receiver Transmitter) real RS232 signal transmission rate higher than 115200 bps can be used for even higher performance. PL2303TA flexible baud rate generator can be programmed to produce any rate 75 basis points and 6,000,000 bps between.

PL2303TA is designed for use in mobile and embedded solutions, provides a compact, can be easily adapted to any connectors and handheld devices. With a very small business or suspend mode power consumption, PL2303TA is perfect with plenty of power left for the devices connected to the bus-powered operation.

This product is designed for laboratory, product testing, low-cost MCU communications and other applications, there are four lead

Red + 5V
Black GND
White RXD
Green TXD
