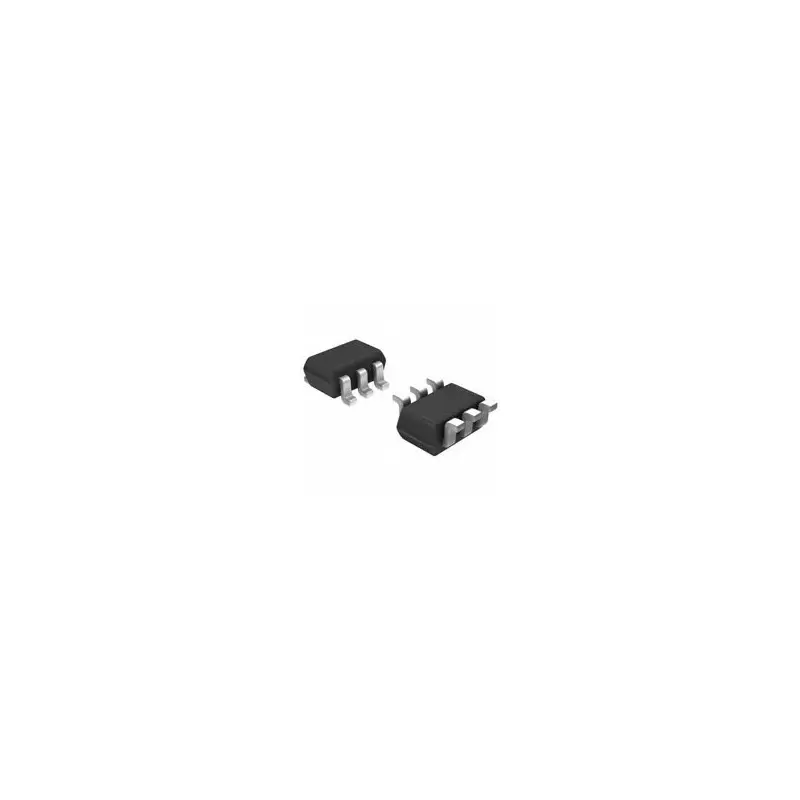

SN65220DBV ESD محافظ/اورجینال

هیچ امتیاز پاداش برای این محصول وجود ندارد.


نظر و رتبه بندی مشتریان

4016000

محصول جدید

383,300 ریال

نویز گیر SN65220DBV   ESD Protection -کویر الکترونیک

Specifications, Features, Applications
SN65240, SN75240 SINGLE AND DUAL UNIVERSAL SERIAL BUS PORT TRANSIENT SUPPRESSORS
Design to Protect Submicron or 5-V Silicon from Noise Transients Applicable to Two High- or Low-Speed Universal Serial Bus (USB) Host, Hub, or Peripheral Ports Port ESD Protection Capability Exceeds: ­ 15-kV Human Body Model ­ 2-kV Machine Model Low Current Leakage. 1 µA Max Stand-Off Voltage. 6.0 V Min Low Capacitance. 35 pF Typ
­ No internal connection When read horizontally, Pin 1 is the bottom left pin.
description
The is a single transient voltage suppressor and the SN75240 and SN65240 are dual transient voltage suppressors designed to provide additional electrical noise transient protection to two USB ports. Any cabled I/O can be subjected to electrical noise transients from various sources. These noise transients can cause damage to the USB transceiver and/or the USB ASIC if they are of sufficient magnitude and duration. The USB ports are typically implemented or 5-V digital CMOS with very limited ESD protection. The SN65220, SN75240, and SN65240 can significantly increase the port ESD protection level and reduce the risk of damage to the large and expensive circuits of the USB port. The SN75240 is characterized for operation from to 70°C. The SN65220 and SN65240 are characterized for operation from 85°C. IEC1000-4-2 ESD performance is measured at the system level and system design influences the results of these tests. A high compliance level may be attained with proper system design.
IEC1000-4-2 Compliance Test Levels IEC1000 42 COMPLIANCE LEVEL MAXIMUM TEST VOLTAGE CONTACT DISCHARGE (kV) AIR DISCHARGE (kV)
or D (One Suppressor Shown) NOTE A: All four GND terminals should be connected to ground.
Voltage ­ V NOTE A: Typical current versus voltage curve was derived using the IEC 1.2/50-µs surge waveform.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.
SN65240, SN75240 SINGLE AND DUAL UNIVERSAL SERIAL BUS PORT TRANSIENT SUPPRESSORS
absolute maximum ratings over operating free-air temperature range (unless otherwise noted)
Continuous total power dissipation. See Dissipation Rating Table Electrostatic discharge. Class 3, A:15 kV, 2 kV Peak power dissipation, PD(peak). 60 W Peak forward surge current, IFSM. 3 A Peak reverse surge current, IRSM. ­9 A Storage temperature range, Tstg. to 150°C Lead temperature mm (1/16 inch) from case for 10 seconds. 260°C
Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. DISSIPATION RATING TABLE PACKAGE DBV TA 25°C POWER RATING 1150 mW DERATING FACTOR ABOVE 25°C 3.1 mW/°C 9.2 mW/°C = 70°C POWER RATING = 85°C POWER RATING 598 mW
mW 4.2 mW/°C 268 mW This is the inverse of the junction-to-ambient thermal resistance when board-mounted and with no air flow.
MIN Operating free free-air air temperature temperature, ­40 0 MAX 85 70 UNIT °C
electrical characteristics over recommended operating conditions (unless otherwise noted)
PARAMETER Ilkg V(BR) Leakage current Breakdown voltage TEST CONDITIONS or D terminals or D terminals MIN 6.5 TYP 7 MAX 1 8 UNIT µA V
Full-Speed or Low-Speed USB Host-or-Hub Port Transceiver 27 A GND D­ B GND 1.5 k (Low Speed Only) 27 Full-Speed or Low-Speed USB Down Stream Transceiver 27
SN65240, SN75240 SINGLE AND DUAL UNIVERSAL SERIAL BUS PORT TRANSIENT SUPPRESSORS
NOTES: A. All linear dimensions are in millimeters. B. This drawing is subject to change without notice. C. Body dimensions do not include mold flash or protrusion.
