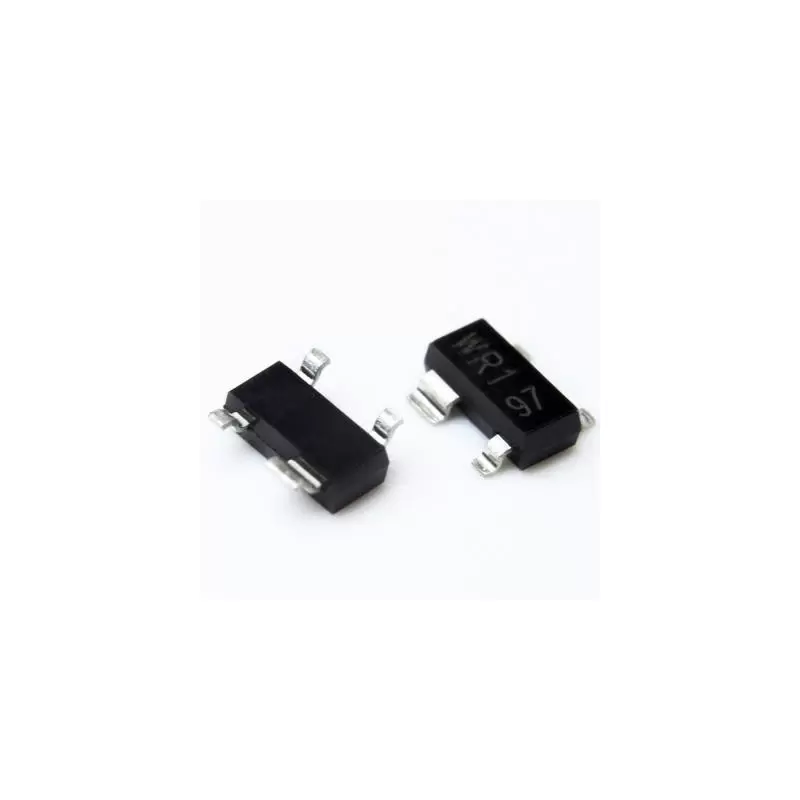

PRTR5V0U2X - ESD Suppressors / TVS Diodes 5.5V -کویر الکترونیک
دیود TVS Diodes 5.5V - PRTR5V0U2X - اورجینال -New and original+گارانتی
General description:

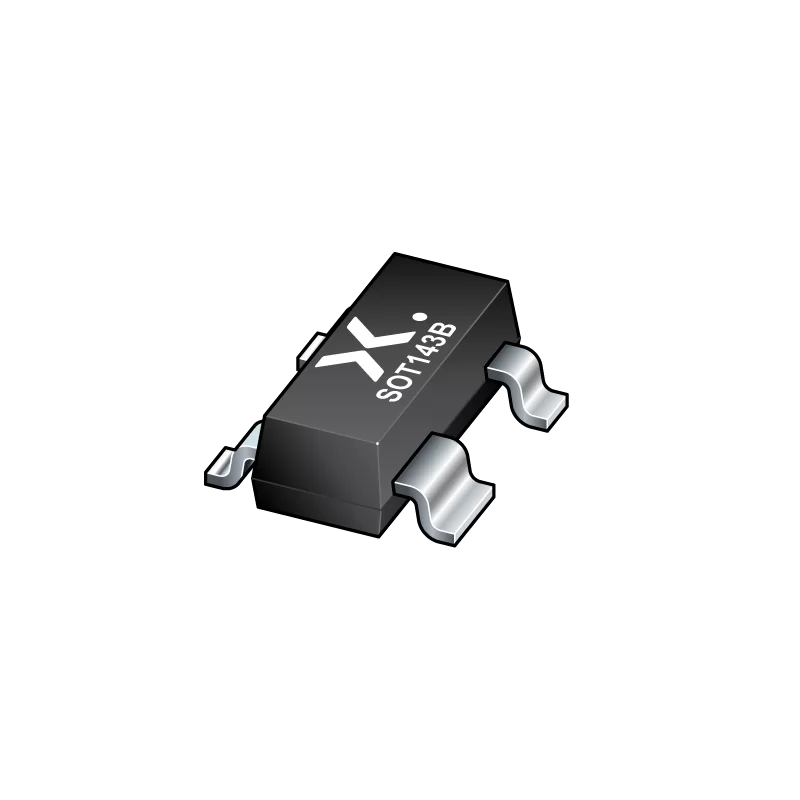

Ultra low capacitance rail-to-rail ElectroStatic Discharge (ESD) protection diode in a smal lSOT143B Surface-Mounted Device (SMD) plastic package designed to protect twoHi-Speed data lines or high-frequency signal lines from the damage caused by ESD andother transients.PRTR5V0U2X incorporates two pairs of ultra low capacitance rail-to-rail diodes as well asan additional ESD protection diode to ensure signal line protection even if no supplyvoltage is available
Features:
ESD protection of two Hi-Speed data lines or high-frequency signal lines:
Ultra low input/output to ground capacitance: C(I/O-GND)=1pF
ESD protection up to 8 kV
IEC 61000-4-2, level 4 (ESD)
Very low clamping voltage due to an integrated additional ESD protection diode
Very low reverse currentnSmall SMD plastic package
Applications:
USB 2.0 ports
Digital Video Interface (DVI) / High Definition Multimedia Interface (HDMI) interfaces
Mobile and cordless phones
Personal Digital Assistants (PDA)
Digital cameras
Wide Area Network (WAN) / Local Area Network (LAN) systems
PCs, notebooks, printers and other PC peripherals
Manufacturer:
Nexperia
Product Category:
ESD Suppressors / TVS Diodes
Product Type:
ESD Suppressors
Polarity:
Bidirectional
Working Voltage:
5 V
Number of Channels:
2 Channel
Termination Style:
SMD/SMT
Package / Case:
SOT-143B-4
Breakdown Voltage:
6 V
Vesd - Voltage ESD Contact:
8 kV
Vesd - Voltage ESD Air Gap:
-
Cd - Diode Capacitance:
1 pF
Minimum Operating Temperature:
- 40 C
Maximum Operating Temperature:
+ 85 C
Qualification:
AEC-Q101
Packaging:
Cut Tape
Part # Aliases:
PRTR5V0U2X T/R
