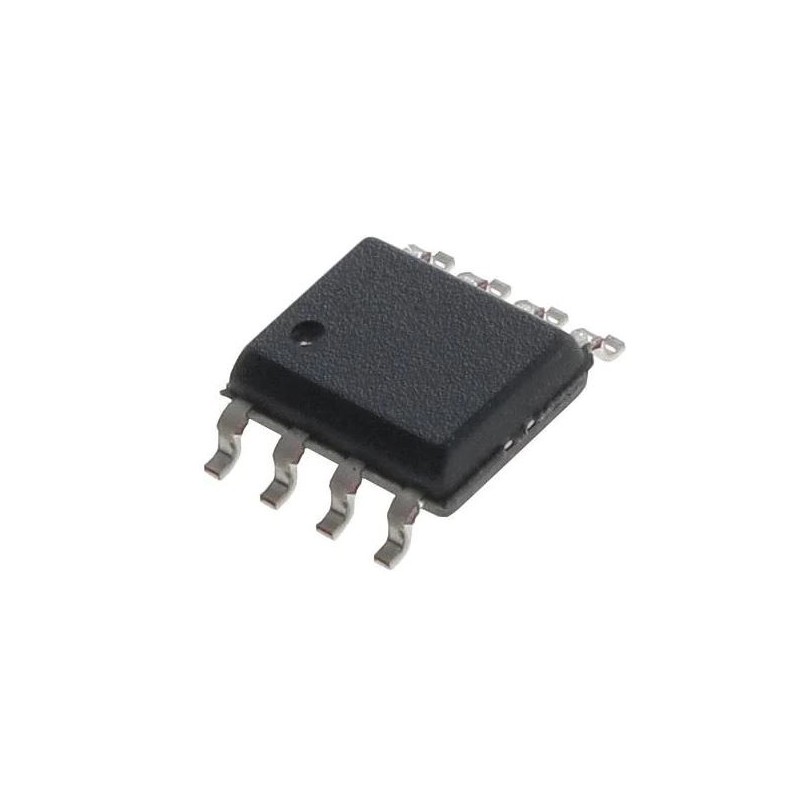

آیسی CS4334-KSZR مبدل دیجیتال به آنالوگ - اورجینال -New and original+گارانتی

آیسی CS4334-KSZR مبدل دیجیتال به آنالوگ - اورجینال -New and original+گارانتی

Audio D/A Converter ICs IC 8-Pin 24Bit 96kHz Stereo DAC

Description:
The CS4334 family members are complete, stereo dig-ital-to-analog  output  systems  including  interpolation,1-bit  D/A  conversion  and  output  analog  filtering  in  an8-pin package. The CS4334/5/8/9 support all major au-dio  data  interface  formats,  and  the  individual  devicesdiffer only in the supported interface format.The  CS4334 family  is  based  on  Delta-Sigma  modula-tion, where the modulator output controls the referencevoltage  input  to  an  ultra-linear  analog  low-pass  filter.This architecture allows for infinite adjustment of sam-ple   rate   between   2 kHz   and   100 kHz   simply   bychanging the master clock frequency.The CS4334 family contains on-chip digital de-empha-sis,  operates  from  a  single  +5V  power  supply,  andrequires  minimal  support  circuitry.  These  features  areideal  for  set-top  boxes,  DVD  players,  SVCD  players,and A/V receivers.

Features:
Complete Stereo DAC System: Interpolation, D/A, Output Analog Filtering
24-Bit Conversion
96 dB Dynamic Range
-88 dB THD+N
Low Clock-Jitter Sensitivity
Single +5 V Power Supply
Filtered Line-Level Outputs
On-Chip Digital De-emphasis
Popguard® Technology
Functionally Compatible with CS4330/31/33

Manufacturer:
    Cirrus Logic
Product Category:
    Audio D/A Converter ICs
Series:
    CS4334
Number of Converters:
    2 Converter
Resolution:
    24 bit
Interface Type:
    Serial
Sampling Rate:
    96 kS/s
Operating Supply Voltage:
    5 V
Minimum Operating Temperature:
    - 10 C
Maximum Operating Temperature:
    + 70 C
Mounting Style:
    SMD/SMT
Package / Case:
    SOIC-8
Packaging:
    Cut Tape
Height:
    1.5 mm
Output Type:
    Analog
Product:
    Audio DACs
Architecture:
    Delta-Sigma
Moisture Sensitive:
    Yes
Operating Supply Current:
    15 mA
 Product Type:
    Audio D/A Converter ICs
 Factory Pack Quantity:
    3000
 Subcategory:
    Audio ICs
 Supply Voltage - Max:
    5.5 V
 Supply Voltage - Min:
    4.75 V
